NVLink, InfiniBand and SpectrumX

less than 1 minute read

Summary from zhihu post, which some picture from here.

This blog talks lot of parellesim as well.

Also this post dives really deep into networking which is totally over my understanding. It has a good intro to NCCL at the end.

1 NVLink and NVSwitch

Nvidia’s properiatery tech for between GPU communicating links. (Also works between GPU and CPU).
NVswitch is on the node
After merging Mellanox, NVLink can work cross nodes with NVLink Switch(off nodes), composing a NVLink Network.
NVlink 4.0 supports up to 32 nodes (256 GPUs)

InfiniBand introduced RDMA, bypassing the CPU for memory access
Introduced in 90s to replace PCI. But deplayed by internet bubble burst. Then Intel goes for PCIe

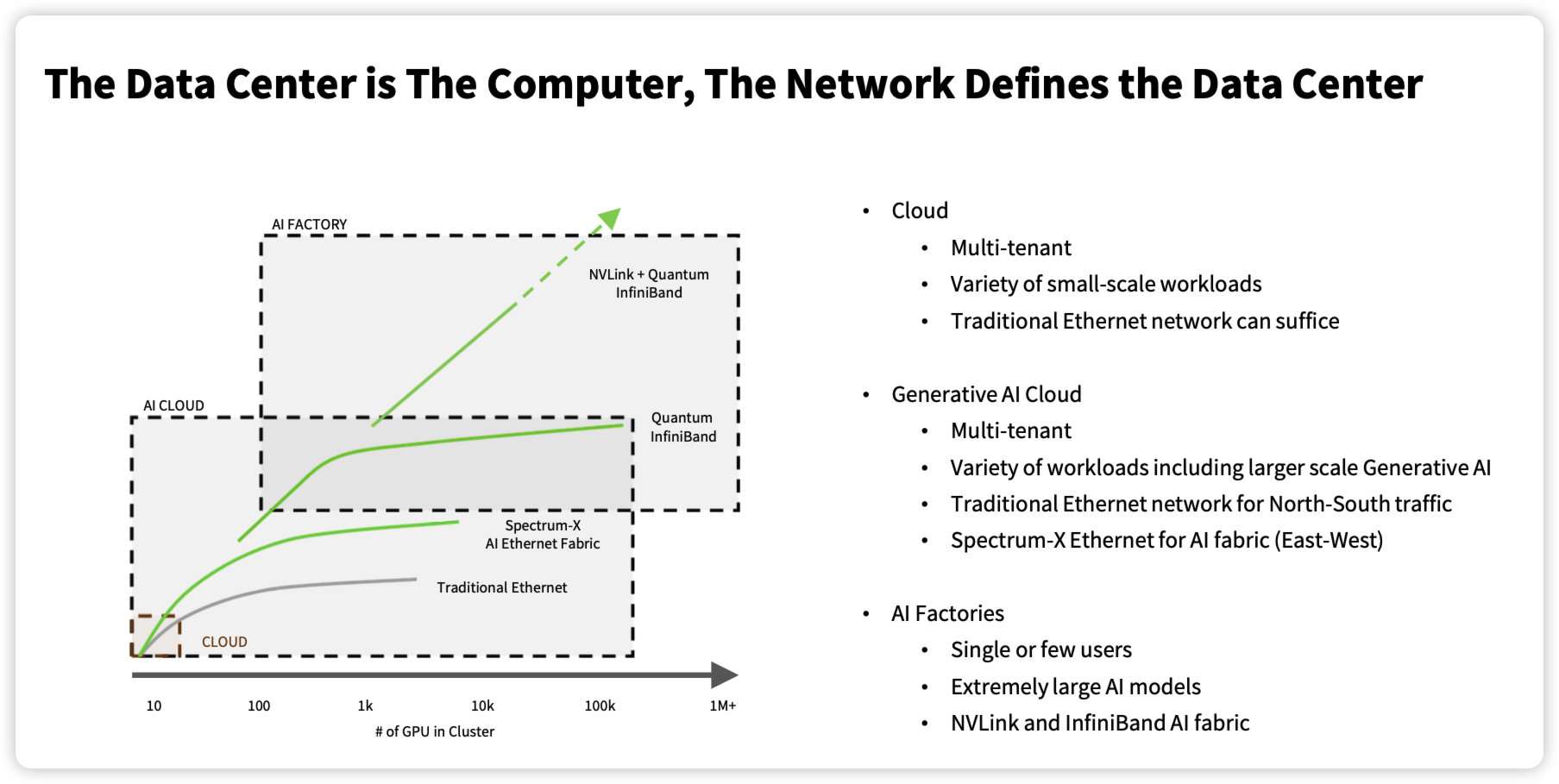

Target for AI Factory
Quantum + Connect-X NIC product from NV
3 RoCE
RDMA over Converged Ethertnet
Implementatng RDMA with existing Ethernet, low cost
v1 is called IBoE. v2 is the main stream now.
Based on UDP/IP
iWARP(Internet Wide Area RDMA Protocol) is another RDMA implementation over TCP/IP
4 Ethernet

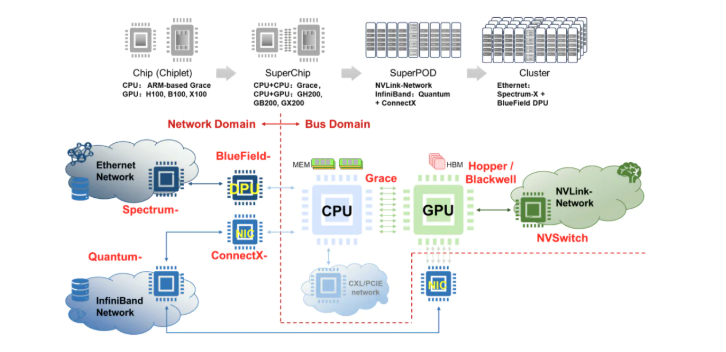

Target for AI Cloud
One of the solutions with Inifiband
Spectrum-X + BlueField DPU product from NV
